Other Auxiliary Parts

The Aluminum liquid degassing tank, and aluminum water slag removing filter tank are the auxiliary equipment for melting and casting, divided into a fixed aluminum liquid refining machine, hoisting type deaerator, and mobile aluminum water degassing and slag removing tank, which can be customized according to the customer’s furnace equipment height processing.

The processing facility of the degassing tank includes two inner chambers, a purification chamber, and a heating and insulation chamber. The middle is separated by a SiC partition. The bottom of the two chambers communicate. After the aluminum alloy liquid is degassed and slag-removed in the purification chamber, it flows into the insulation chamber from below the partition. It is placed under heat preservation, and the heat preservation chamber is heated by using a U-shaped silicon carbon holding jacket and a silicon carbide protection tube immersed in an aluminum alloy liquid. The outer shell of the box is made of 10 mm steel plate, and the inner lining is made of refractory material. The conjoined front and rear of the treatment box are independent internal cavities. It is convenient for the heater to conduct directly and carry the submerged flow of the processed aluminum alloy liquid.

The aluminum industrial filter box uses fused quartz as the main raw material and utilizes the excellent volume stability of the fused quartz material.

In addition, the aluminum industrial filter box incorporates anti-stick aluminum additives that can prevent the penetration of aluminum water, making the whole material have excellent resistance.

Aluminium Adhesion The special aluminum industrial filter box design makes the casting surface smoother.

At the same time, cast fireproof lighter chutes and degassing box castable have a certain strength and good heat preservation performance.

The aluminum industrial filter box is a prefabricated product made of special materials.

It is an essential configuration for forming a stable filter cavity when using a ceramic foam filter plate to filter aluminum and aluminum alloy solutions.

The aluminum industry filter box and other products provided by us have excellent heat resistance, high resistance to aluminum and the rate of erosion of the solution, good insulation properties, high strength, strong resistance to mechanical attack, molding size standards, effectively realize the filtration performance of ceramic foam filter plates and provides reliable support. In addition to the general specifications, it can be designed and manufactured according to the needs of customers.

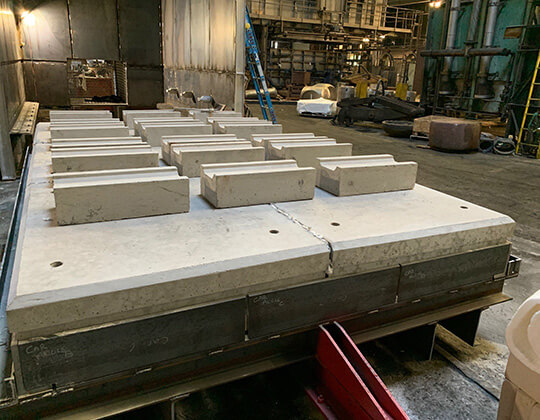

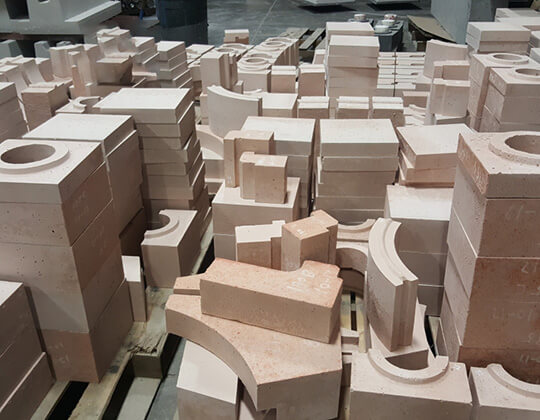

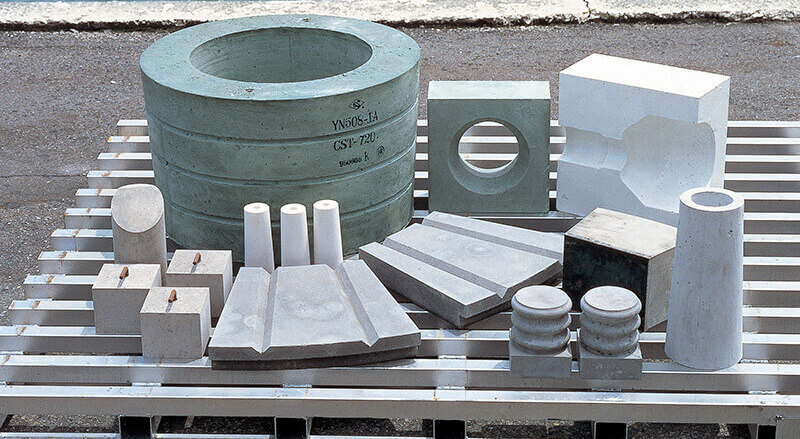

Refractory castable precast blocks are most commonly used in high-temperature furnace equipment. According to the construction site's needs, this refractory product was produced in advance by the manufacturer to facilitate customer construction. Monolithic refractory castable cast-in-site is time-consuming and labor-intensive and requires the guidance of a professional technician. Thus, precast shapes are a better choice and widely used by the cement, steel plants, and the molten aluminum industry in recent years.

We insist on creating superior custom-engineered Precast Shapes and a wide variety of materials to withstand the critical demands of industries and provide tailored solutions to meet our customers' requirements. We produce a wide range of big block and precast solutions for aluminum melting and metal transfer solutions. These can be supplied dried or fully fired.
