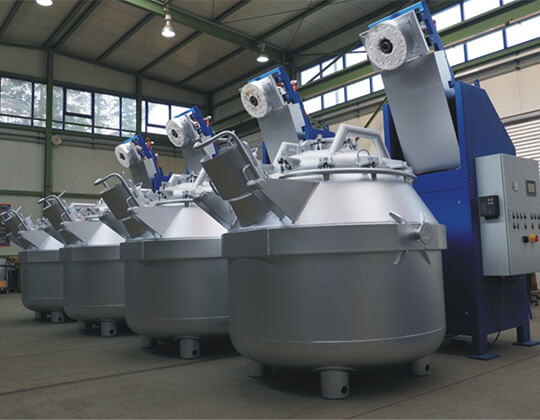

Aluminum Transfer Ladle

Molten aluminum transfer ladles are refractory products, which are used for molten aluminum transfer. Ladles enable molten aluminum to be held at temperature for extended periods, keeping metal clean.

Send Email Inquiry Now

Introduction of Aluminum Transfer Ladle

Molten aluminum transfer ladles are refractory products, which are used for molten aluminum transfer.

Ladles enable molten aluminum to be held at temperature for extended periods, keeping metal clean.

Transfer Ladles are also employed in the aluminum industry to move molten metal from one location to another, sometimes from a melting furnace to a holding furnace which is frequently employed to hold metal whilst it is treated with fluxing agents or during degassing.

Details of Aluminum Transfer Ladle

They are filled by tapping out a furnace or using a specialist metal transfer pump. Most transfer ladles need supportive steel shells and are lined with refractory materials, which can be a precast shape or cast in place. The refractory materials must be resistant to thermal shock, erosion, and cracks because of the extreme conditions that it is subjected to.

Characteristics of Aluminum Transfer Ladle

1. Increased metal quality

2. Lower energy costs

3. Improved process efficiency

4. Reduced downtime and replacement costs

5. Customized designs

6. Turnkey solutions

Aluminum Transfer Ladle Specification Data

Items	Parameters	Remarks
Maximum temperature of molten aluminum	800℃
Maximum ladle lining temperature	900℃
Natural temperature drop of molten aluminum	≤18℃/h	For a 500-kg ladle; the lower the capacity, the higher the figure
Ladle shell surface temperature	≤50℃
Ladle capacity	3000 KG	The specific gravity of molten aluminum is set to 2.5t/m3
Ladle body weight		1500~4500KG
